Composite Bearing INW-10 SF-1 DX DU Bushing Steel For Engine Bearing

Brand Name : INWAY

Model Number : INW-10

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 PCS

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 100 tons/month

Delivery Time : 5 work days or based on quantity

Packaging Details : Carton+pallet

Application : Engine Bearing

Size : Standard

Standard : DIN 1494

Material : Steel+Bronze +PTFE

Type : with split

Technical : Dry bushing

Contact Now

Composite Bearing INW-10 SF-1 DX DU Bushing Steel Bronze Powder PTFE / Fibre

Features:

INW–10 material is designed to operate without supplemental lubrication and will perform excellent when lubrication is present. Low friction, low wear rate, good sliding characteristics and very low absorption are a few of the features of this material. INW-10 bushings will support rotary, linear and oscillating motion.

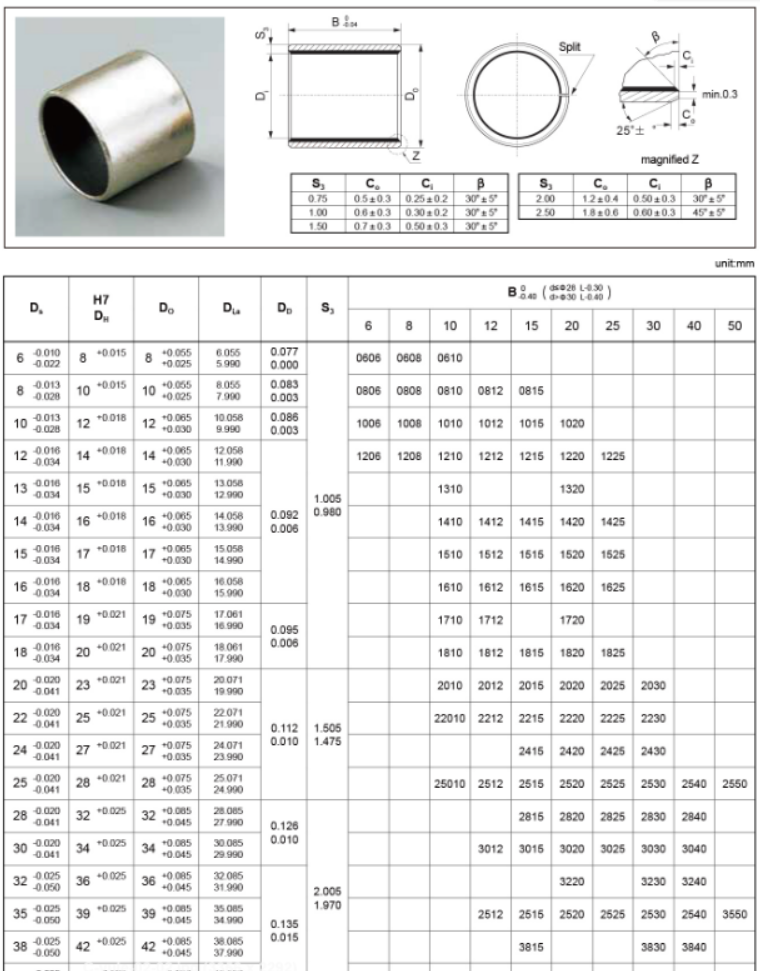

Structure:

1. PTFE/Fibre mixture thickness 0.01~0.03mm. It is thecontact surface for the rotating shaft. Minute partides of the PTFE layer and the sintered bronze material combine to create a solid lubricant film, which coats the shaft.

2. Sintered bronze powder thickness 0.20*0.35mm,A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the PTFE layer and conducts the thermal build up away from the bearing surfaces.


3. Low-carbon steel backing. Setting the foundation of the bushings, the steel back provides exceptional stability, load carrying and heat dissipation characteristics.

Typical Applications:

1. This material meets the demanding criteria for long life and maintenance free performance with or without lubrication.
Automotive: tractors, combines, crop sprayers, earth-movers, graders and other construction, auto machines, specific uses in power steering cylinders, steering gear thrust washers, disc brakes, calipers and pistons, shock absorbers, governor linkage, windshield wiper motor, tilt gear assemblies...


2. Business machines: photocopy machines, typewriters, mail sorters, postage meter systems, computer terminalprinters and peripheral equipment,automaticprinting devices, mail processing machinery...
Hydraulics and valves: pumps including gear, rotary, water, axial piston, and other types, ball, butterfly, poppet steam, and other valves and valve trunnions...


3. Home appliances: tape recorders, refrigerators, air conditioners, cleaners, polishers, sewing machines, ovens, dishwashers, clothes washing machines...And materials handling, marine engine, packaging, textile equipment, tools...etc.

Load capacity 140N/mm² Friction Coef 0.03~0.18
Temperature -195℃~280℃ PV limit(dry) 4.3N/mm²·m/s
Speed limit 10m/s PV limit(oil) 60N/mm²·m/s

Composite Bearing INW-10 SF-1 DX DU Bushing Steel For Engine Bearing
