SOBF Solid Lubricant Bearings Universal Flange Type Oilless Guide Bushes

Name: SOBF Solid Lubricant Bearings Universal Flange Type Oilless Guide Bushes
Brand: INWAY
Price: 1 USD

SOBF Solid Lubricant Bearings Universal Flange Type Oilless Guide Bushes Manufactures

Brand Name : INWAY

Model Number : SOBF

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 PCS

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 100 tons/month

Delivery Time : 5 work days or based on quantity

Packaging Details : Carton+pallet

Material : Bronze

Type : Sleeve

Size : Standard Size,Customizable

Product name : brass bush,Sleeve Bearing

Features : Low Resistance,Long Operating Life,Maintenance,High precision

Lubricating : Oilless

Contact Now

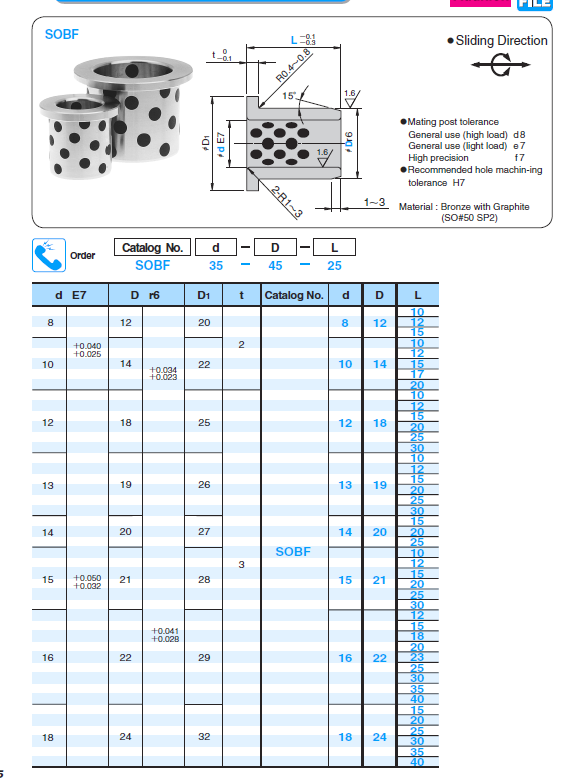

SOBF Solid Lubricant Bearings Universal Flange Type Oilless Guide Bushes

SOBF bearings consist of highly wear-resistance copper cast alloy whose sliding surfaces are evenly provided with a certain percentage of solid lubricant plugs according to work condition, high-strength
copper alloy provides a high load-bearing capacity and the solid lubricant can be formation of low
friction film.

Under technical dry running conditions, the bearing surface is designed with thick running-in film which
enables the solid lubricant to be transferred to the counter material at the first contact.

* Solid Lubricating Bearing, Material: Bronze Alloy SO#50SP2 + Graphite

* Description:
Material: Bronze Alloy SO#50SP2 + Graphite
Hardness: >250HB
Self-lubricating & Maintenance-free

* Features
High load capacity, very good wear and abrasion resistance, moderate corrosion resistance, hardened mating material favorable. Special suitable for toggle mechanism bushing in injection molding machines.

* Possible Application
The product is widely used in ctontinuous casting rolling machine, mining machinery, shipping machinery, turbine, injection machinery, auto mould and so on.

* Available Types
Cylindrical bush, flanged bush, washer, strip...

* Standard Parts

SOBF-0610 SOBF-0612 SOBF-0810 SOBF-0812 SOBF-0815 SOBF-1010 SOBF-1012 SOBF-1015 SOBF-1017 SOBF-1210 SOBF-1212 SOBF-1215 SOBF-1220 SOBF-1225 SOBF-1230 SOBF-1310 SOBF-1312 SOBF-1315 SOBF-1320 SOBF-1325 SOBF-1330 SOBF-1415 SOBF-1420 SOBF-1425 SOBF-1510 SOBF-1512 SOBF-1515 SOBF-1520 SOBF-1525 SOBF-1530 SOBF-1612 SOBF-1615 SOBF-1618 SOBF-1620 SOBF-1623 SOBF-1625 SOBF-1630 SOBF-1635 SOBF-1640 SOBF-1815 SOBF-1820 SOBF-1825 SOBF-1830 SOBF-1835 SOBF-1840 SOBF-2015 SOBF-2020 SOBF-2025 SOBF-2030 SOBF-2035 SOBF-2040 SOBF-2515 SOBF-2520 SOBF-2525 SOBF-2530 SOBF-2535 SOBF-2540 SOBF-2550 SOBF-3020 SOBF-3025 SOBF-3030 SOBF-3035 SOBF-3040 SOBF-3050 SOBF-31.520 SOBF-31.530 SOBF-31.535 SOBF-31.540 SOBF-3520 SOBF-3525 SOBF-3530 SOBF-3535 SOBF-3540 SOBF-3550 SOBF-4020 SOBF-4025 SOBF-4030 SOBF-4035 SOBF-4040 SOBF-4050 SOBF-4525 SOBF-4530 SOBF-4535 SOBF-4540 SOBF-4550 SOBF-5030 SOBF-5035 SOBF-5040 SOBF-5050 SOBF-5060 SOBF-5540 SOBF-5560 SOBF-6040 SOBF-6050 SOBF-6060 SOBF-6080 SOBF-6368 SOBF-6560 SOBF-7050 SOBF-7080 SOBF-7560 SOBF-8060 SOBF-8080 SOBF-80100 SOBF-9060 SOBF-9080 SOBF-10080 SOBF-100100 SOBF-12080 SOBF-120100 SOBF-13080 SOBF-130100 SOBF-14080 SOBF-140100 SOBF-150100 SOBF-150120 SOBF-160100 SOBF-160120
